Syme Carbon Foot features a flexible design that allows it for both indoor and outdoor use. PR.01.K3 Syme also provides perfect stability and safe ground contact. Recommended for prosthetic users with mobility grades 1 and 2.
Syme Carbon Foot features a flexible design that allows it for both indoor and outdoor use. PR.01.K3 Syme also provides perfect stability and safe ground contact. Recommended for prosthetic users with mobility grades 1 and 2.
Its constructed sole plate and upper attachment point make the product suitable for very active and heavy patients.
Carbon Fiber
Heel Height 10 mm
Max Body Weight 150 kg

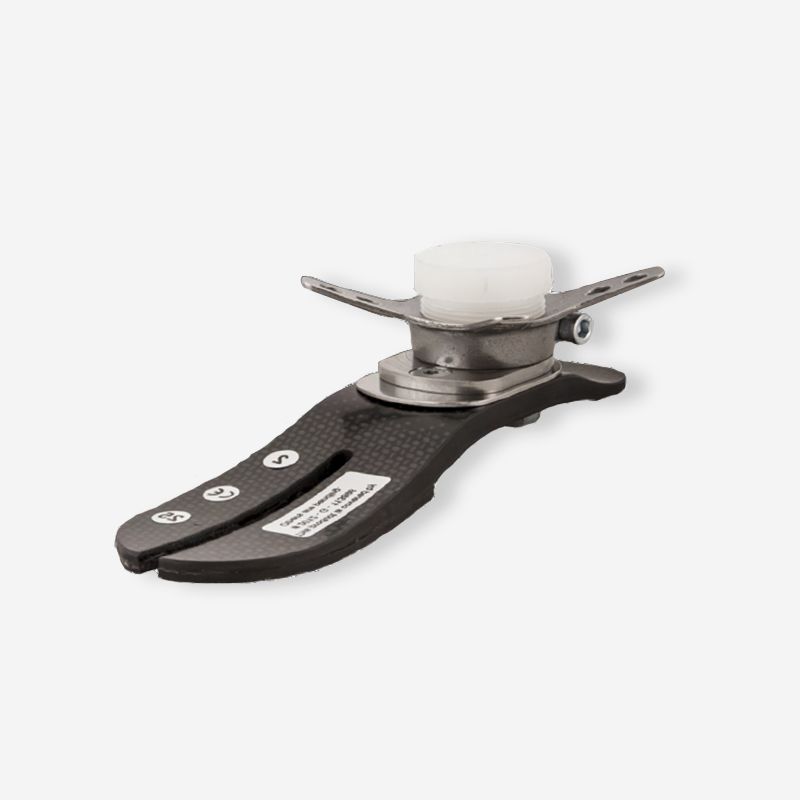

PR01.K3 is a flexible and light carbon foot, specially designed for patients with a lower extremity Syme’s amputation. The upper part of the foot features a carbon-fiber plate whereas the toes are composed of two carbon sheets. The foot is suitable with a steel rotating lamination anchor.
PR01.K3 is available in sizes from 22-29 cm and provides flex-assist at toe-off and heel. The dynamic dorsiflexion and improved loading response reduce energy consumption and minimize ground reaction force. The hard surface shows extra resistance to stress making it especially suitable for heavy patients during their daily activities. To be used with carbon socks and foot shells for carbon feet.
Advice for technicians: The static settings must be made very carefully by correctly determining the connecting points of the lamination adapter.
